OPTIGAUGE II EMS
Non-Contact Glass, Tubing, and Multilayer Thickness Measurement
The OptiGauge® II EMS uses the same core hardware and software as the standard OptiGauge but is tailored to applications that require a broader thickness measurement range. The non-destructive system provides objective measurements and eliminates operator error through technician-friendly controls, making it suitable for in-line production testing.
Like our standard OptiGauge II, the OptiGauge II EMS is easy to use, highly reliable, and delivers submicron accuracy.
- Specifications
- Features
- Applications
- Software + Accessories
- Thickness measurement range: 12 µm to 50 mm
- Measurement Rate: 30 Hz
- Accuracy: ± 1.0 µm
- Extended measurement range of up to 50 mm (Based on material refractive index)
- Multilayer capability, up to 20 layers

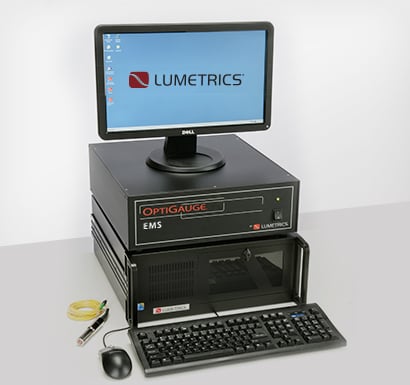

- Includes controller, OptiGauge Control Center Software license, monitor, keyboard, mouse, and optical probe
- Single- and multi-lens optics and lens stacks
- Alignment of lenses in optical assemblies
- Medical balloons and tubes: top wall, inside diameter, bottom wall, outside diameter
- Float glass
